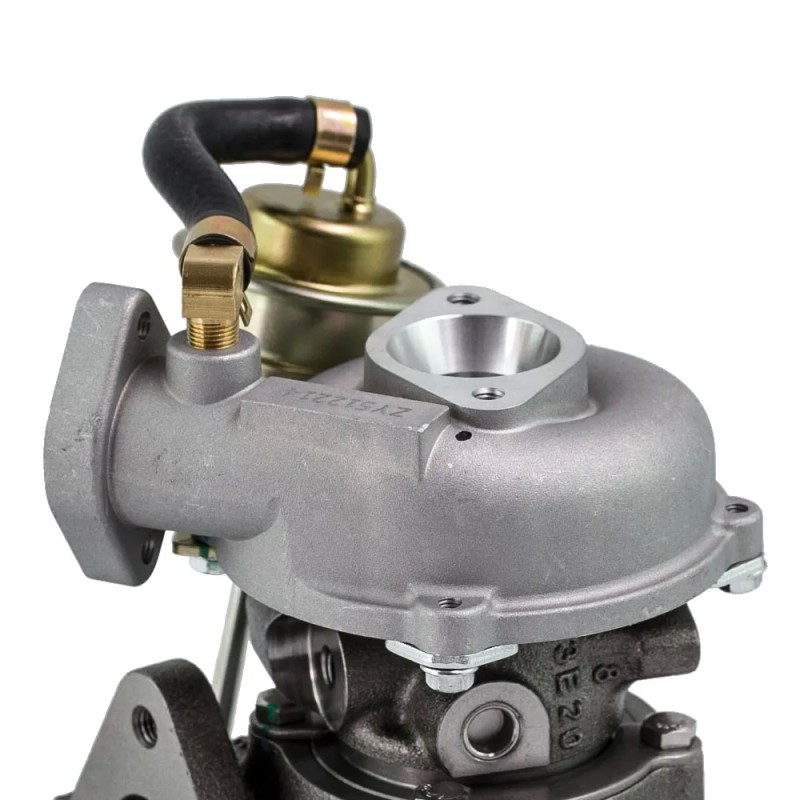

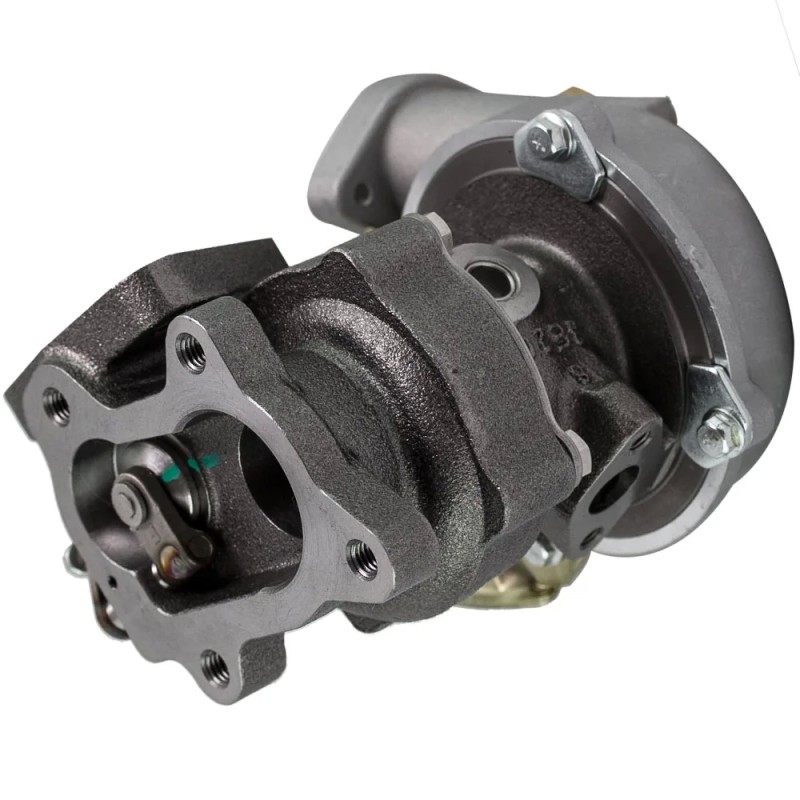

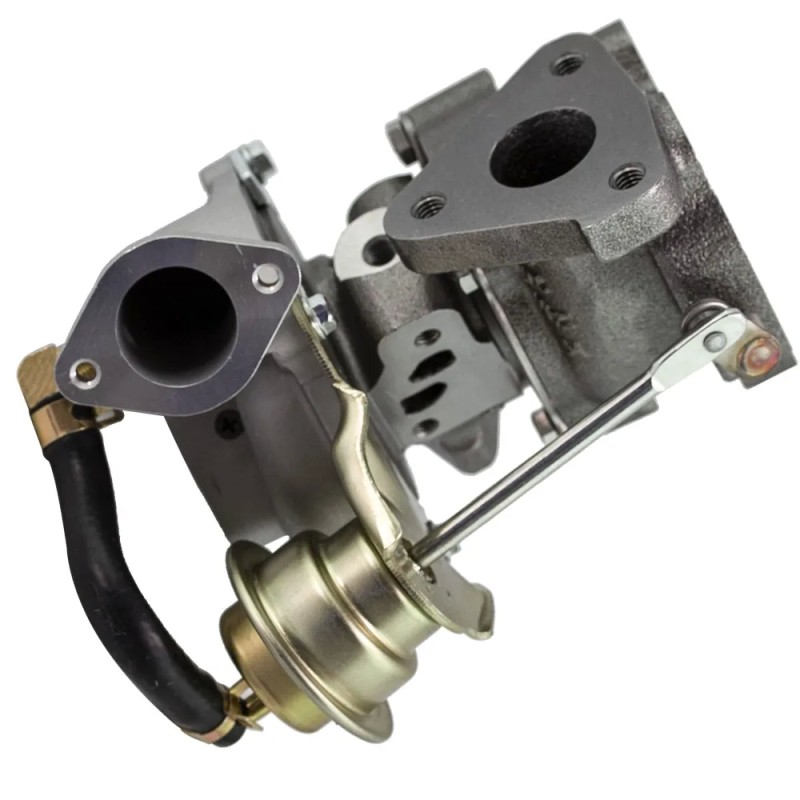

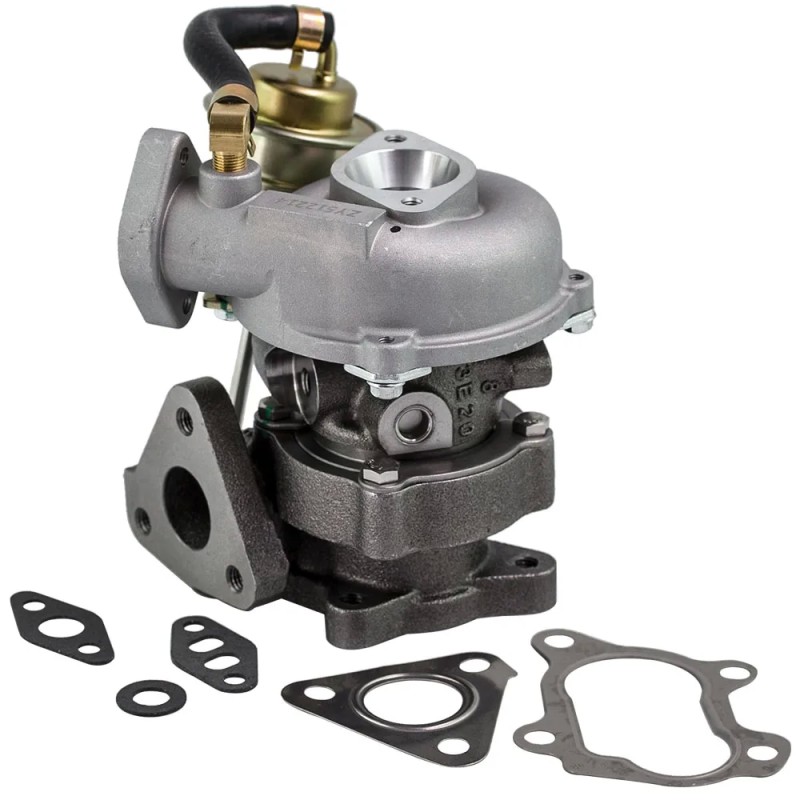

RHB31 Turbocharger for 500-1000cc Motorcycle & ATV

Product Overview

RHB31 Turbocharger is designed for small engine snowmobiles, quads, and motorcycles, delivering powerful performance for engines ranging from 500cc to 1000cc.

Applications

• Ideal for snowmobiles and ATVs with 500-600cc engines, offering up to 100 HP.
• Compatible with Suzuki ALTO Works featuring YA1 F6AT and 21R707-0011-G1 engines.

Turbo Part Numbers

• VZ21
• 13900-62D51
• 1390062D51
• 1390062D50
• 13900-62D50
• VE110069

Specifications

• Model: RHB31
• Engine Types: YA1, F6AT, and Isuzu 4TNA
• Cooled Type: Water and oil cooled
• Bearing Type: Journal Bearing
• Horse Power Range: 23-100 HP

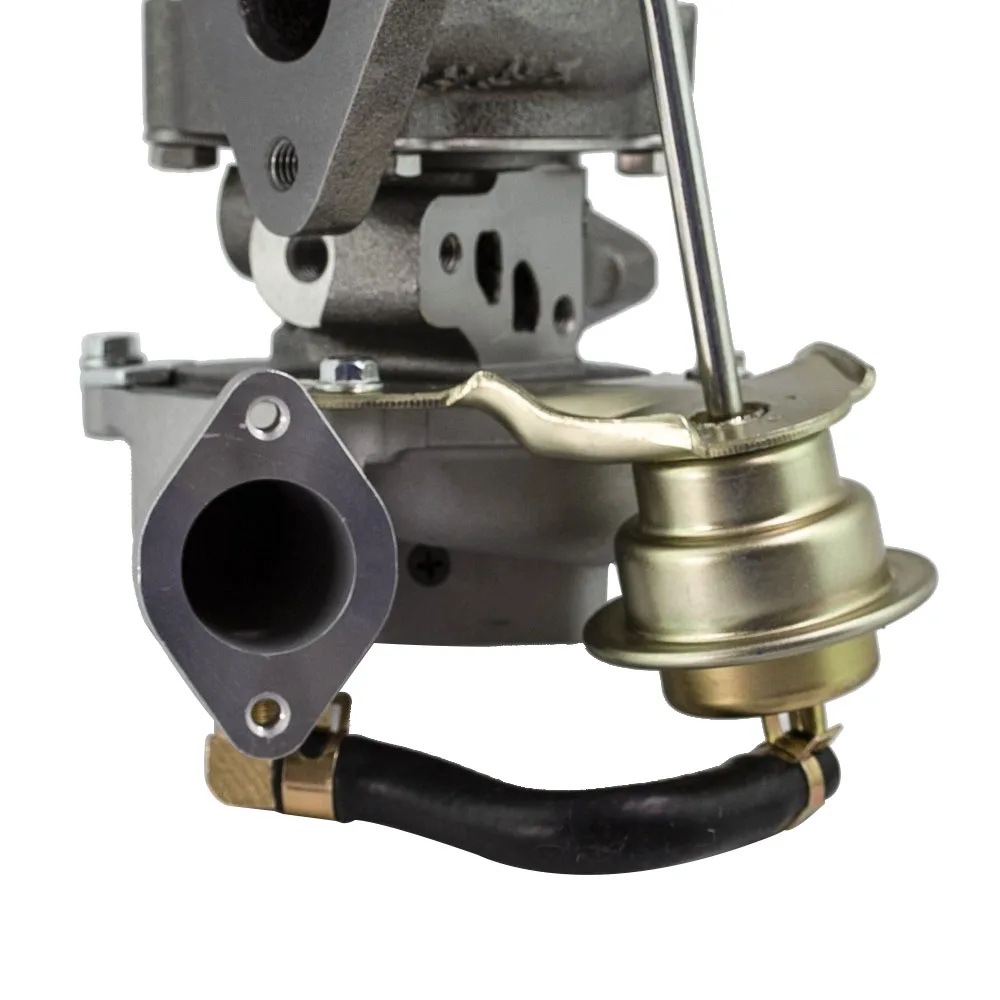

• Maximum Pressure: 15 psi (Internal-wastegate)
• Compressor and Turbine Dimensions:
• Compressor Inducer: 24.2 mm
• Compressor Exducer: 37.1 mm
• Turbine Inducer: 35 mm
• Turbine Exducer: 26.7 mm
• Package Size: 26 x 25 x 23 cm
• Weight: 3400g
• Condition: Brand New

Features

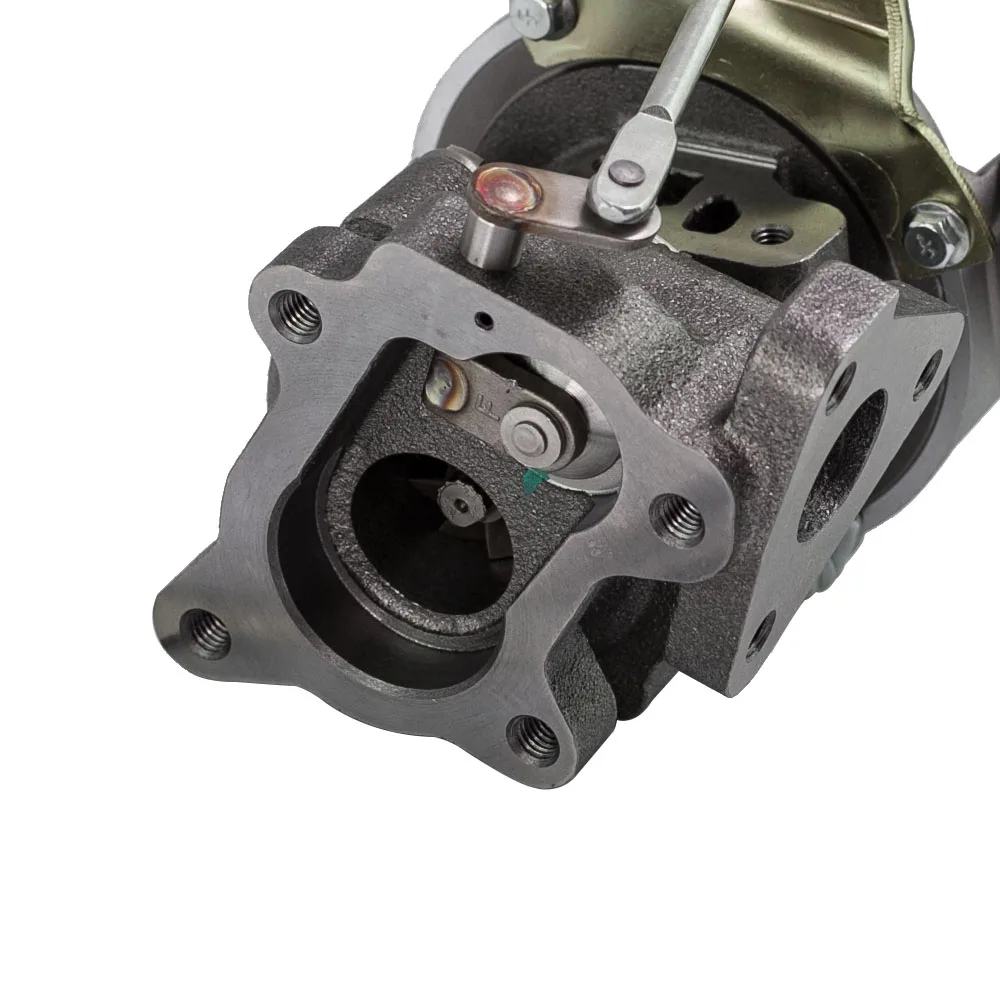

• Durable turbine housing made of ductile iron resistant to high temperatures (up to 700°C).
• Steel turbine wheel constructed from K418 alloy for oxidation resistance and stability (up to 900°C).
• Lightweight aluminum compressor housing with corrosion resistance.

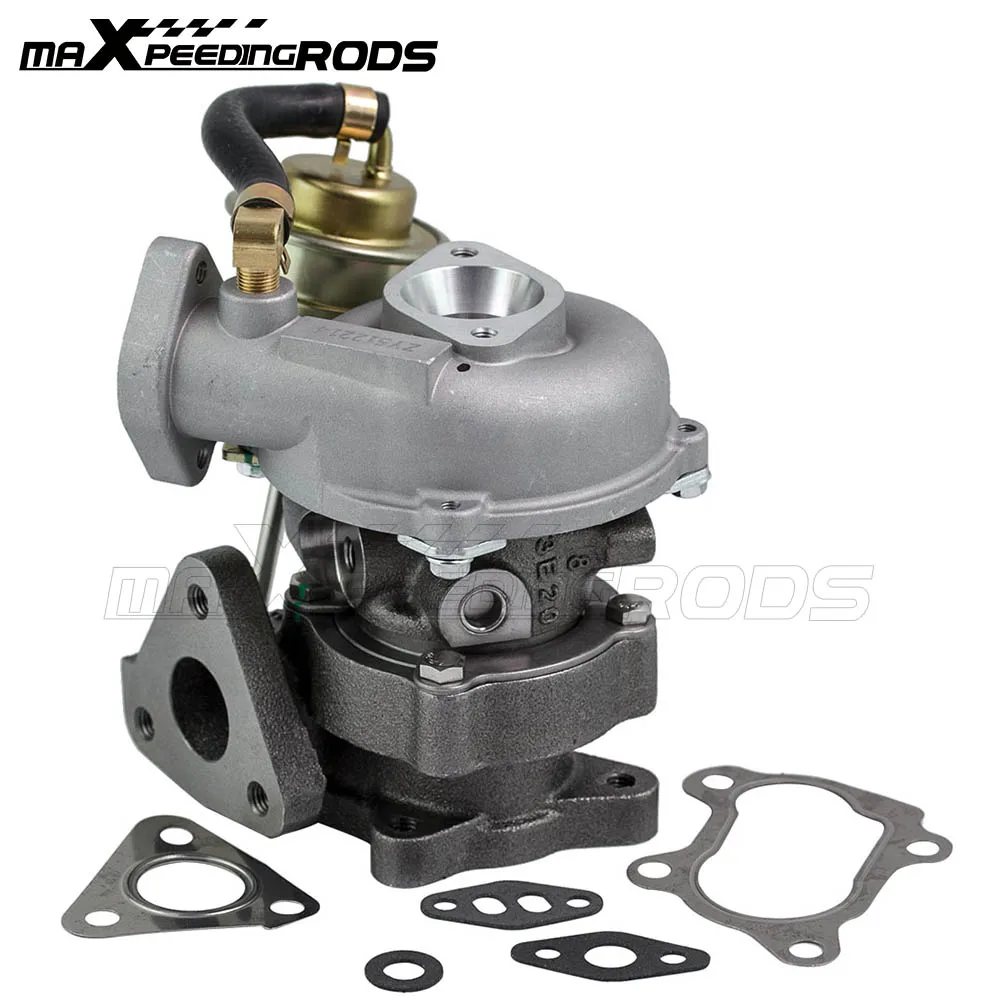

• Includes all necessary gaskets for easy installation.
• Precision quality assurance and strict inspection processes.

Important Notes

• Confirm your original turbo part number before purchase.
• Professional installation is recommended.
• Analyze and address any previous issues that caused the original turbo failure before installation.
